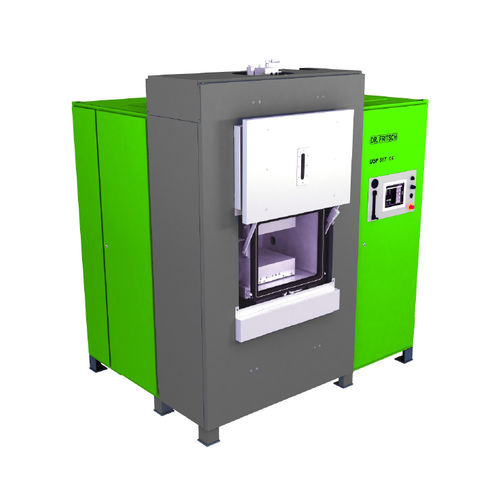

Electric press DSP 517

sinteringeconomicalelectronic

for the pressure sintering of metal bonds ceramic bonds resin bonds - for the production of various products as for example diamond segments grinding wheels grinding shoes fickerts production of high-quality diamond segments or other parts by precise control of temperature, pressure, stroke and time electronic stroke measuring high productivity due to short cycle times economical due to vacuum- / inert gas system large-surface graphite electrodes with large opening height manual thermocouple box with 3-fold control total electric power approx. 220 kVA Options increase of maximum heating power to 240 kVA extended pressing force range: 2 - 100 % of pressing force switchable pressing force insulation of the vacuum chamber with graphite felt temperature measuring with pyrometer active suction UPS („uninterrupted power supply“) for the PLC barcode reader with handheld scanner incl. adjustment process documentation by PC control system IPA NT
