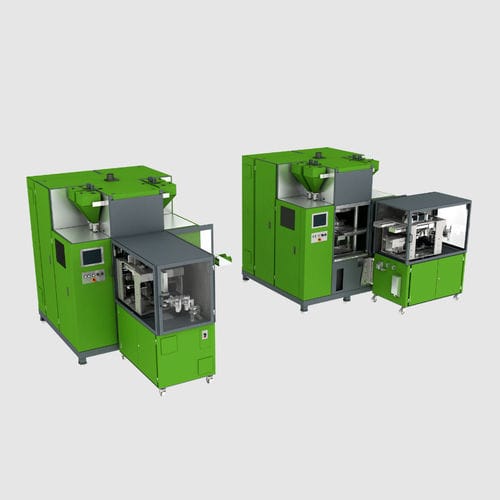

Electric press DiaSet V3

formingcompacthorizontal

Cold pressing of diamond segments and green compacts is a process for producing diamond tools such as diamond segments with and without a base, segment rings and green compacts for diamond saw wires by applying pressure at room temperature. There are two pressing methods, namely gravimetric cold pressing, in which the dosing of materials is based on weight, and volumetric cold pressing, which doses on a volume basis. The purpose of cold pressing is to create precise and robust diamond tools that enable specially shaped segments and green compacts for various applications. The aim is to achieve high density and strength in the end products. Adjustable pressing parameters for different materials are crucial for precision and control. Monitoring the pressure during the pressing process and the ability to adapt to different mould sizes and shapes ensure precise implementation of the process. Quality improvement is demonstrated by ensuring high density and hardness of the pressed diamond tools, minimising defects and irregularities in the end products and ensuring consistent quality for optimum performance. for the production of one or multi-layer diamond segments with or without dimaond-free backing and set diamonds on the KPV 300 high productivity: approx. 60 sec./segment with one cavity horizontal pressing, 7/8 layers (diamond/powder) X- and Y-Axis: free position motor-driven 2 hole plates on two seperate Y-Axis diamond feeding for one diamond type (25 up to 50 mesh) patterns of hole perforation plates dimensions approx. x = 110 mm; y = 85 mm
