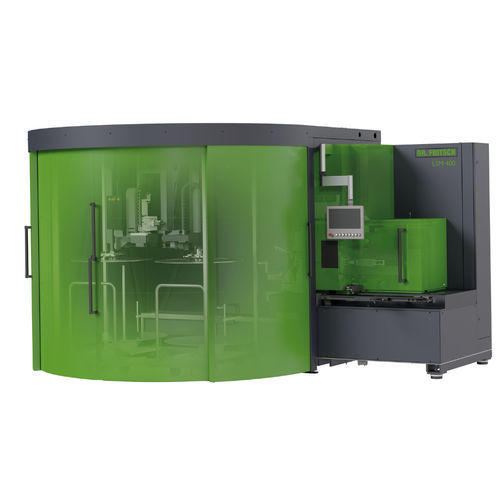

Laser welding machine LSM 400

capacitor dischargeautomaticCNC

automatic CNC controlled laser welding machines for saw blades up to 1,600 mm and core drills up to Ø 300 mm capacitor discharge welding machine for cup wheels up to Ø 254 mm for diamond saw blades of Ø 100 – 1,650 mm with manual feeding for diamond saw blades of Ø 100 – 1.100 mm with automatic feeding can be equipped with a 2, 3 or 4 kW fiber laser constant high quality of the saw blades due to precise positioning of the segments higher strength of the welding seam due to intelligent measuring methods (for example drop segment, concentricity of the steel center) quick-change system for clamping of the steel centers and segment adjustment provide greater flexibility with all batch sizes Options combination air dryer / activated carbon filter welding of drop segments welding of twin, triple segments, tack welding line scanner segment feeding by belt magazine (with manual or electrical adjustment) or bowl feeder segment bunker and camera recognition for bowl feeder segment feeding for up to 2 special segments with manual or electrical adjustment blade clamping system for up to Ø 60 mm magazine for automatic loading and unloading up to Ø 1.100 mm torque testing of the segment on the blade inside of the machine
