Optical measuring machine WMM 65

3Dpartsshaft

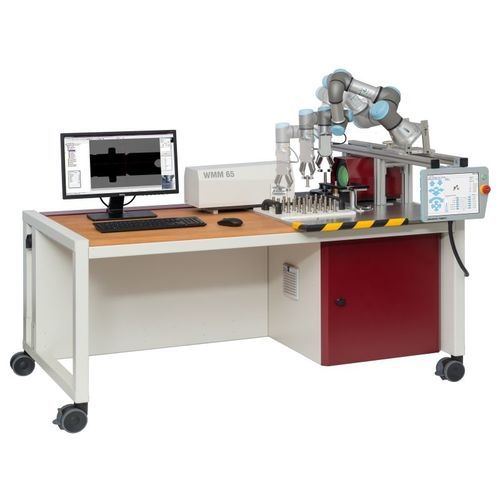

The WMM 65 optical measuring device can be modularly configured to meet the requirements of internal quality assurance processes. Integration into a production line or a manual QA workstation is no problem at all. The freely configurable interface for the workpiece holder and the process-side software interface enable optimum integration into the production environment. With the variable arrangement of standard or customised interfaces, the SAPHIR measurement software, etc. – we adapt to your processes, machines and wishes. Standard equipment der WMM 65 • 5 megapixel CMOS b/w camera • Telecentric lens for precise measurement • 23.6″ multi-touch panel PC with Windows operating system • LAN and WLAN network interface • Telecentric LED transmitted light illumination • Green LED light and filter for reduction of interferences • Calibration certificate • SAPHIR measurement and analysis software with SAPHIR shaft Options for the WMM 65 • Customised measurement range • Motorised and digitized rotation axis • I/O module for interfacing to handling systems and handling robots • Clamping tools: Magnet holder for workpieces; precise manual centring via iris diaphragm; • six-jaw chuck The highlights • Simple management of measurement programs • Integration into the company network • Interfacing to your CAQ interface • Measurement directly on the production line • Plug & Play installation thanks to works calibration • Intuitive operation – measurement within seconds
