Eccentric screw pump JP-480
for chemicalsairelectric

Eccentric screw pump - JP-480 - Dr. Jessberger GmbH - for chemicals / air / electric
Eccentric screw pump - JP-480 - Dr. Jessberger GmbH - for chemicals / air / electric
Add to favorites
Compare this product


Characteristics

Technology
eccentric screw
Fluid
for chemicals, air
Operation
electric
Priming
submersible
Mobility
stationary
Domain
industrial
Applications
cooling, drum, mixing
Material
stainless steel, PTFE
Voltage
230 V, 115 V
Protection level
explosion-proof, ATEX, robust, IP55
Other characteristics
mechanical, seal
Flow

83 l/min, 112 l/min
(21.92628 us gal/min, 29.58727 us gal/min)

Head

16 m, 37 m
(52'05" , 121'04" )

Power

825 W
(1.12 hp)

Fluid temperature

55 °C
(131 °F)

Weight

6.5 kg
(14.33 lb)

Description

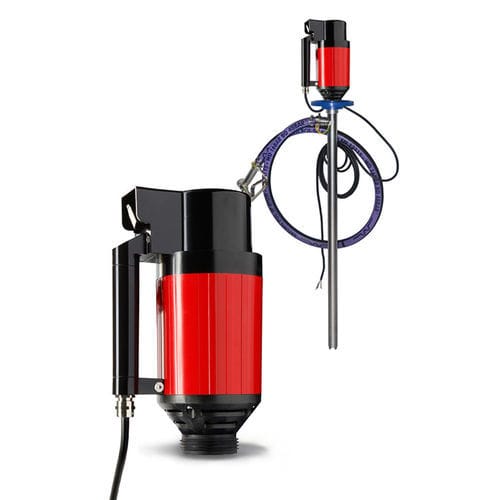

The drive JP-480 is a compactly built, robust explosion-proof universal motor that is built and approved in accordance with the latest explosion protection guidelines (ATEX 2014/34/EC) and IECEx. The collector motor is explosion-proof according to II 2G Ex db IIC T6 Gb and has an EC-type examination certificate Bureau Veritas 17 ATEX 1 088 X and IECEx EPS 17.0045 X. The electric motor Ex-JP-480 offers in addition to the air operated motors maximum protection when pumping flammable media or for use in hazardous environments. At such applications separate authorizations for the drive motor and the pump tube acc. directives ATEX 2014/34/EC are required. The handy and powerful device (6,5 kg) can be used as a drive for the ATEX certified sealless pump tubes made of stainless steel (Ø 41 mm), the mixing pump tubes in stainless steel, the pump tubes in stainless steel with mechanical seal or complete drum emptying function and the eccentric screw pump tubes series JP-700 SR PTFE ATEX. In this combination the drive is suitable for many thin liquid to viscous, neutral, slightly aggressive and easily flammable media with a flash point below 55 °C. Its sophisticated, technically clear structure ensures an efficient and safe use when transferring the wide range of media. The drum pump motor is characterized in addition to its robustness by its elegant design and ease of use. The non-stationary and stationary usable drive is particularly suitable for intermittent operation. As externally ventilated motor it has an optimal air cooling, low noise and ensures high operational safety and long lifetime.
