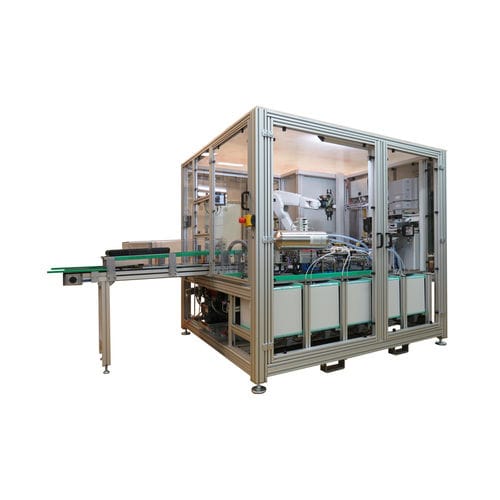

Multi-parameter test machine

automaticroboticfor valves

Mechanical, electrical and fluidical tests • fully automatic handling by using 6-axis robot with double-gripper • modular measurement equipment by using interchangeable test circuits • parts fixtures designed as interchangeable tools • fully automated pneumatical and electrical adaption • vision test of completeness, DMC and other marks • leakage test using overpressure and vacuum • back pressure test using overpressure and vacuum • flow measuring under controlled pressure and vacuum • measurement of current consumption under different operating conditions • measurement of opening and closing voltage • definition of the inductive resistance at the valve • straightness test of the contact pins • individual part labeling by using pin marker • automatic packing and placing in specific trays
