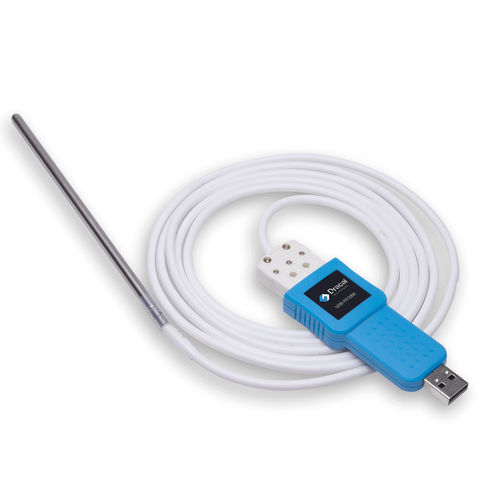

RTD300
Connect any Pt-100 RTD sensor to an USB port with this adapter to measure a very wide range of temperatures with an outstanding precision.
From: USD$144.99
Supports 2 and 3 wire PT100 RTD sensors
Temperature Operating range:-200°C to +600°C
Accuracy:±0.001°C (at 25°C)
Resolution:±0.0005°C (typical)
Noise level:±0.0015°C ( at 25°C)
Additional information
• Free data acquisition toolkit
• 3-point user calibration mechanism
• VCP mode
• Traceable to the CNRC (NIST) certificates
The RTD300 is an interface for temperature measurements using most of 2- or 3-wire 100 ohms RTDs, such as the popular PT100 probes. Built around a 24-bit data converter combining cutting-edge technologies, the RTD300 brings unmatched precision and resolution to your temperature values, with an improved sample speed.Furthermore, the RTD300 compensates the measured value of errors introduced by the length of a 3-wire probe cable, up to 100 feet, and drastically reduces electronic noise, thanks to its sophisticate’s builtin digital filters. Sensors connect using a convenient and industry standard mini RTD 3-pin connector. It’s compact USB-key form factor simplifies integration even in space-constrained applications.
Data acquisition
Be instantly operational with our free data acquisition toolkit. Our data visualization, logging and integration tools are distributed free of charge, are cross-compatible (Windows, Mac, Linux) and support an unlimited number of our measuring instruments, all types mixed together.
Possible applications
• Aerospace
• Biomedical
• Food processing
• Robotics
• Materials engineering
• Engineering
• R&D
• Scientific research
• Pre-certification
