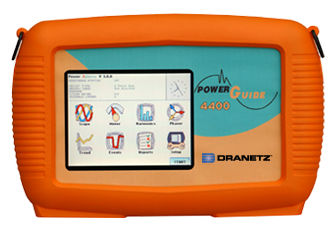

Monitoring analyzer PowerGuide 4400

for electrical networkspower qualitypower

Equipped with 8 independent channels, the 3-phase PowerGuide 4400 is the only advanced power monitoring instrument to incorporate a color touch screen into its lightweight design. Automated setups provide instant detection of circuits and configurations, ensuring that the instrument is ready to successfully collect data. Users can select the length and mode of data collection, including troubleshooting, data logging, power quality surveys, energy and load balancing. PowerGuide 4400 Features & Highlights Eight channels, 4 voltage & 4 current Intuitive color touch screen Light weight About 4 pounds, 2 kg with rugged rubber boot AC/DC applications Automated setups for out of the box instrument readiness Unique report card annunciator that instantly characterizes events Samples at 256 samples/cycle Independent voltage & current triggering, cross triggering Capture of low-medium frequency transients THD/harmonic spectrum and TID/interharmonics spectrum to the 63rd Remote communicationsRS-232, Ethernet or USB Battery or AC mode Built in UPS battery with external charger Available with up to 4GB Compact Flash Memory Available languages English, French, Italian, German, Spanish, Swedish, Polish, Thai, Korean, Finnish, Japanese, Chinese (Traditional and Simplified) DRAN-VIEW enabled (Windows 98,, XP, 7,8) Complies with IEEE 1159, IEEE 519, IEEE 1453 Complies with IEC 61000-4-30 Class A and EN50160 Measures flicker according to IEC 61000-4-15; measures harmonics according to IEC 61000-4-7 Measures wide range of parameters, including crest factor, K factor, transformer derating factor and telephone interference factor
