Power quality analyzer PQ1000

signalmonitoringsecurity

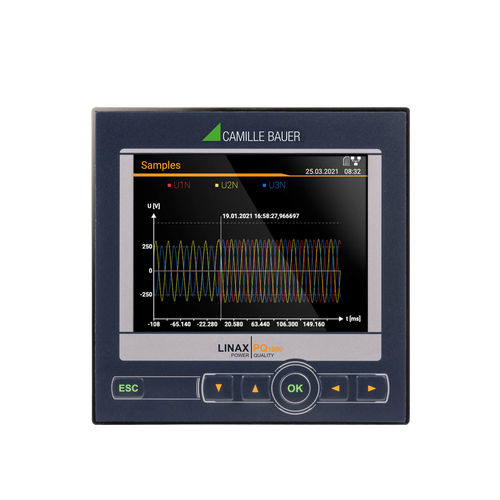

From GMC-Instruments Group company Camille Bauer, the PQ1000 is a low cost, compact monitoring solution that combines PQ monitoring (with waveform recording) and 4 quadrant energy monitoring in one instrument. Wide-ranging applications include utility, facility, manufacturing, petro chemical, mission critical and more. The PQ1000 is housed in a 96mm x 96mm panel mounted enclosure with a high resolution, color TFT display. The PQ1000 is compliant with IEC 61000-4-30 Edition 3 Class S for trustworthy PQ measurements. It can detect and record waveforms for sags/dips, swells, interruptions, as well as recording harmonics, and more, all in parallel with complete energy metering capabilities. Digital I/O provides the ability to read alarms and provide state/condition based monitoring and alarming. IEC 61850, Modbus and Profinet are available for remote communications with 3rd party SCADA and other monitoring systems. The PQ1000 comes standard with 2 digital outputs, plus 1 optional extension module to add relays, analog outputs, digital inputs, fault current detection, or temperature monitoring, • Panel mounted (96mm x 96mm) PQ & Energy monitoring • IEC 61000-4-30 Edition 3 Class S compliant. • PQDIF, Modbus, IEC 61850, Profinet communications • Web server for real time meters, setup, reporting • Enhanced security: Roles Based Access Control (RBAC), https, client white list, security log • State & condition based monitoring & alarming. Temperature & fault current monitoring • PQView DE, PQView, DranSCADA compatible
