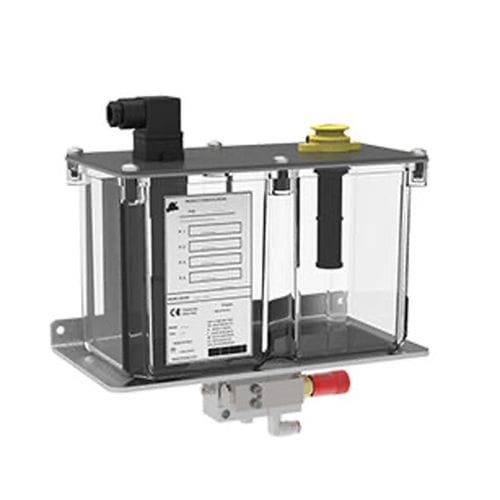

VIP4Tools/Oil can be used for dripping or brush applications on chains. It has been designed to guarantee high performance at low price and is characterised by compactness.
The system consists in minipumps (from 1 to 4) pneumatically driven from sub-bases.
Mini-pumps flowrate can be manually adjusted to satisfy any need (0-30mm³).
Available in several versions: from 1 to 4 points of lubrication.
Key features:
- Air supply pressure 5 ÷ 8 bar (73.5 ÷ 117.6 SUS)
- Working temperature -5 ÷ +55 °C (+23 ÷ +131 °F)
- Working humidity 90% max
- Lubricant Sintetic mineral oil
- Oil viscosity (at working temperature) 32 ÷ 320 cSt (149.9 ÷ 1480 SUS)
- Storage temperature -20 ÷ +65 °C (-4 ÷ +149 °F)
