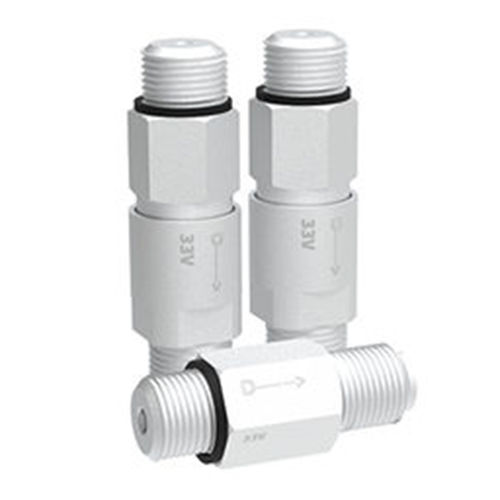

Oil injector 33VM0 series

grease

The 33V system with M10 valves is a new application version of injection lubrication technology, which is compatible with M10 manifolds. The M10 version has a new “M10x1 thread” on the oil inlet side, at the point where the valve is connected to the manifold. The system can be used with Oil 32-200 cSt and Greas NLGI 0. The M10x1 thread allows many configurations and make the system suitable for any application need. ADVANTAGES: -The M10x1 thread allows many new configurations -Cylindrical thread and copper gaskets (copper sealing ring) -Possibility to insert the valve directly into machine structure -High Reliability. The 33V Injectors are fully assembled, tested and certified on a robotic system. APPLICATION The 33V M10 system is suitable for the installation on small and medium sized machines, such as tools in general, tools for wood working, presses, weaving machines. Key features: - Delivery: 0.03 - 0.16 / 0.20 - 0.50 / 0.75 - 1.00 - Minimum pressure: bar 12 (175) - Maximum pressure:bar 50 (725) - Maximum pressure of release: bar 4 (58) - Lubricant: Oil 32-2000 cSt; Grease NLGI 0 - Minimum time of release (second): 32s - 250 cSt; 10s 260 -1000 cSt; 200s NLGI 0 200
