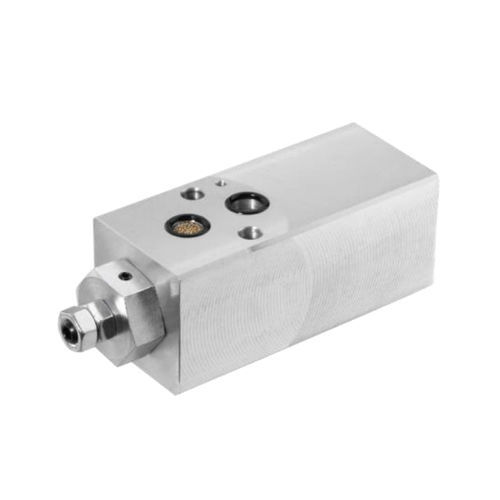

Volumetric flow regulator SFE

for oilfor lubrication systems

The adjustable flow regulator with a flange structure ensures a load-independent and even flow rate for supplying hydraulic consumers. An adjusting piston, which regulates the oil flow rate, is used for the adjustment. OPERATION MODE A measuring orifice fixed in the flow regulator determines the volume flow. A control piston ensures constant pressure difference at the measuring orifice, regardless of the pressure difference of inflow P and outflow A. The volume flow is pressure and temperature independent. The function is ensured if the pressure difference from P to A is min. 5 bar and the available volume flow is more than 10% than the relevant actual volume flow at the operating viscosity of the oil. Key features: - Pipe connection: On G ½“ ; Off G ⅜’’ - Temperature: 20 to 80 °C - Protecion grade: IP 67 - Lubricant: Mineral and synthetic oils - Viscosity: 10 to 750 mm²/s
