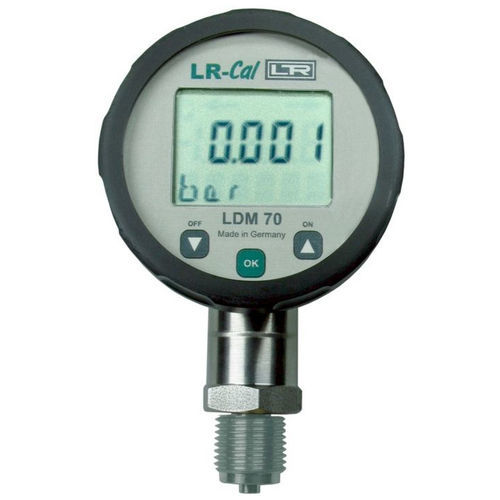

Digital pressure gauge LDM 70-E25

threadedelectronicIP65

Features of the digital test pressure gauge LR-Cal LDM 70-E25: compact, rotatable housing (DS 70 mm) Battery powered (Ranges < 400 mbar: ±0.25% BFSL = ±0.5% FS acc. to IEC 60770) 4.5 digit LC diisplay (digit height 11 mm) 6 digit additional display to sho the selected pressure unit (height 7.5 mm) Pressure units selectable: psi, bar/mbar, mWs, inHg, cmHg/mmHg, kPa/MPa Easy configuration via three push-buttons Ingress protection IP 65 MIN and MAX value memory The display is continously rotatable so that a clear readability is garanteed even in unusual installation positions. The LR-Cal LDM 70-E25 can be operated menu-driven via three push-buttons. Besides showing information about the nominal pressure range as well as minimal and maximal pressure of the process, several pressure units (psi, bar, mbar, mWC, inHg, cmHg, mmHg, kPa, MPa) and the position of the decimal point can be set. The instruments zero and span can be calibrated, and the LR-Cal LDM 70-E25 can be set to factory default values via menu.
