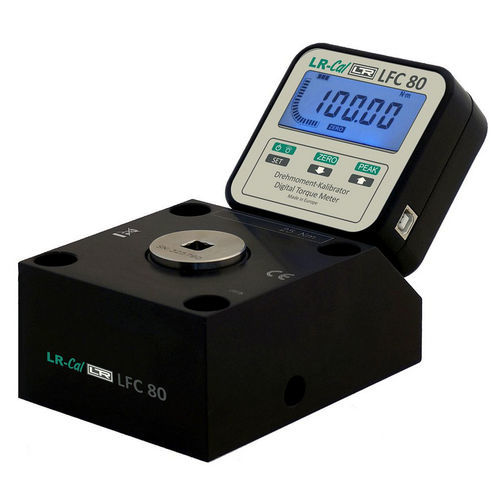

Bench-top torque meter LFC 80

calibrationfor torque wrenchesfor torque adjustment

The LR-Cal LFC 80 is a torque bench for static measurements, composed of a digital indicator and a strain gauge torque, extremely rugged and compact with a precision better than 0.20%. It is ideal for the calibration and control of torque wrenches, screwdrivers, direct reading and snap. The indicator is powered by a Li-Ion chargeable battery with an autonomy of 80 hours, with the AUTO POWER OFF function, which occurs when there are not changes in measurement for a programmable period of time. It allows in static mode a very high resolution and in PEAK mode an acquisition frequency of 4800 measurements per second. The instrument and PEAK functions are working in clockwise direction as well as in counter-clockwise direction. The display of the LR-Cal LFC 80 can be rotated by 90° to be able to work both, horizontally and vertically (using the optional 90° bracket). The device is equipped with an USB 2.0 interface with a transmission rate of 4800 values per second in PEAK mode. A programmable "First PEAK" function makes it easy to avoid mistakes during calibration of torque wrenches. You can select from 9 torque measuring units Incl. ACCREDIA (DAkkS) certificate from 1/10 of range for clockwise direction, Total uncertainty <=1% FS Optional additional ACCREDIA (DAkkS) Zertifikat for counter-clockwise direction PEAK function for exact detection of the "snap-point" (clockwise and counter-clockwise direction) Programmiable "First PEAK" Funktion, makes calibration more easy Optional: with data logging functionality With optional support LR-Cal LFC-ATCplus suitable for calibration as per ISO 6789-1 and ISO 6789-2.
