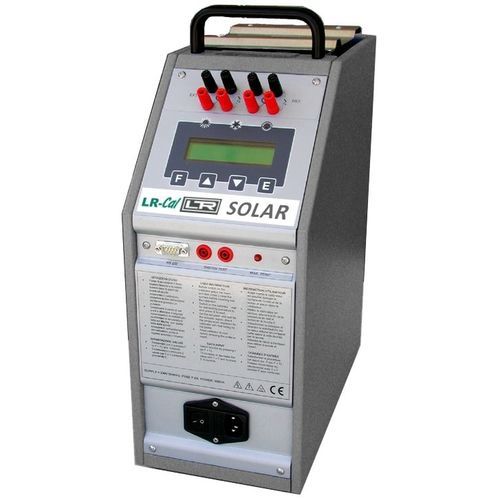

Temperature calibrator SOLAR-1200

portable

The portable dry well (metal block) temperature calibrator LR-Cal SOLAR-1200 is temperature source and reference instrument in one device, for checking and calibrating of all kind of temperature instruments, such as thermometer, RTDs, Thermocouples, Temperature switches, etc. Ramp function Thermostat tests Computer aided calibration via computer interface Several ceramic / Inconel inserts available with different holes The ceramic equalizing block, whose large size suits the external dimensions, ensures a proper heat transmission as well as optimal stability and uniformity values. It's interchangeability makes it possible to test sensors of various lengths, with diameters ranging from 1 mm up to 26 mm. The device is equipped with a counter-current forced air cooling system, which keeps the temperature in the upper part of the well low. This feature allows checking also of very short probes, without heating the connecting head or the handgrip. Heating - max. 15°C per minute Cooling - max. 7°C per minute Temperature uniformity - at 1000°C: radial ±2°C axial ±03°C Block depth - 160 mm Block diameter - 35 mm (block made in ceramic) Interface - RS232 (optional RS232-USB converter available) Housing material - Metal Weight - approx. 10.5 kg Dimension - 350 x 160 x 390 mm
