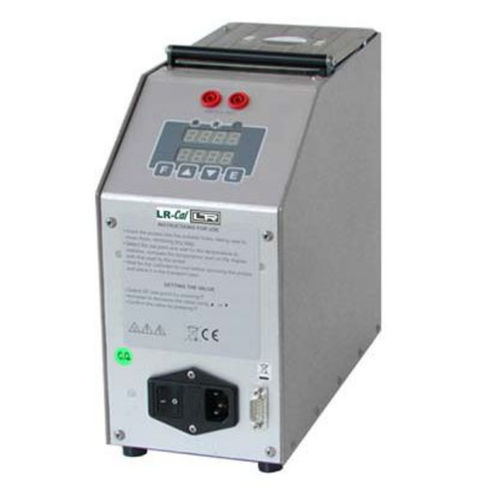

Temperature calibrator PYROS 140-1L

portablecompact

This compact and innovative dry block temperature calibrator is especially designed for field applications, robust and able to maintain high accuracy and stability in severe conditions such as offshore rigs and on board of vessels. The self contained unit is very compact, portable and light weight. The innovative forced air ventilation of model LR-Cal PYROS 140-1L greatly reduce the cooling time and prevents the sensors under test from being exposed to excessive heating. With 1 block made in aluminium, 19 mm diameter Compact and light weight Ramp function Thermostat tests Several different block inserts with different drillings available Optimized for offshore rigs and on board of vessels RS232 interface Heating - from +20°C to +120°C: 20 min. Cooling - from +20°C to -20°C: 17 min. Temperature uniformity - at 0°C radial ±0.1°C (at 40 mm insertion depth) axial ±0.12°C Metal block depth - 104 mm Metal block diameter - 19 mm Power consumption - 80 W Interface - no Housing material - Metal (steel) Weight - approx. 4.9 kg Dimension - 130 x 260 x 280 mm
