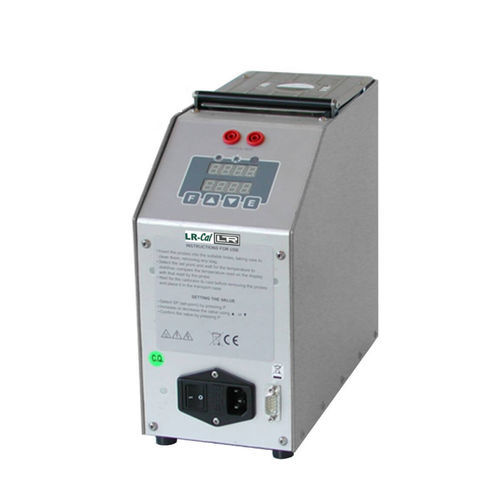

Temperature calibrator PYROS-375

portablecompact

This compact and innovative dry well (metal block) temperature calibratior is expecially designed for field applications, robust and able to maintain high accuracy and stability in severe conditions such as offshore rigs and on board of vessels. The self contained unit is very compact, portable and light weight. The innovative forced air ventilation of model LR-Cal PYROS-375 greatly reduce the cooling time and prevents the sensors under test being exposed to excessive heating. Type approval by DNV-GL (No. TAA00002CX) Compact and light weight Ramp function Thermostat tests Computer interface Several different block inserts with different drillings available Optimized for offshore rigs and on board of vessels Optional kit "black body" available, to calibrate Infrared Thermometers Temperature uniformity - at +50°C radial ±0.1°C (at 40 mm insertion depth) axial ±0.1°C (at 40 mm insertion depth) Dry block depth - 150 mm usable insertion length Dry block diameter - 26 mm Power supply - 115 + 230 VAC switchable Power consumption - 600 W Interface - RS 232 Case material - Metal (steel) Weight - approx. 5.4 kg Dimension - 130 x 260 x 280 mm
