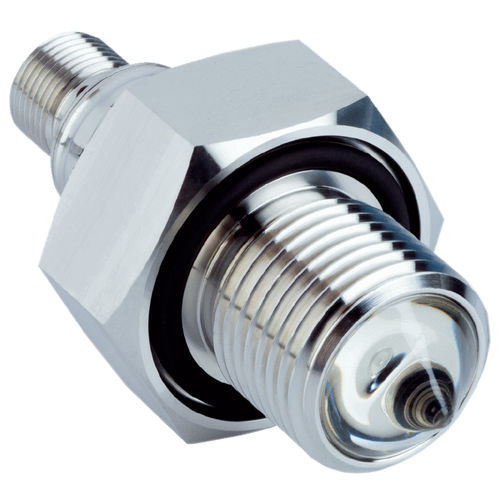

Electro-optical level switch FS-18Sfor liquids
Add to favorites
Compare this product
Characteristics
- Technology
- electro-optical
- Medium
- for liquids
- Process temperature
Min.: -25 °C
(-13 °F)Max.: 55 °C
(131 °F)- Process pressure
Min.: -0.5 bar
(-7.25 psi)Max.: 16 bar
(232.06 psi)
Description
Light source: LED (red light)
Measurement: Switch
Response time: <10 ms
Process connection: 1/2" BSP male
Supply voltage: 10...30 VDC
Electrical connection: M12x1, 4-pin
Signal output: PNP or NPN
MEDIA:
Fluids (with max. low density foam)
