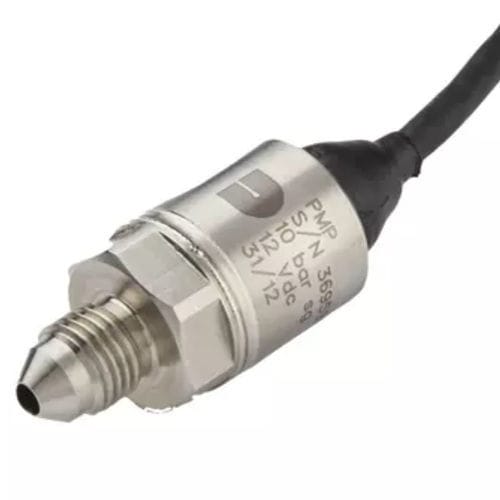

Relative pressure transducer 4300 Motorsport

absolutesiliconanalog

Success in motorsport depends on hundreds of components working together under extreme conditions, and Baker Hughes continues to develop Druck pressure transducers that give the ultimate performance. Druck motorsport sensors have become a world-leading product line used in Formula 1, World Rally Championship and the Indy Racing League, amongst others. The PDCR/PMP 4300 Series is the latest in the range of products that for many years has been “fine tuned” in design to suit all chassis and engine pressure measurement requirements. Features • Race proven technology • Amplified or millivolt output • Stainless steel or titanium construction • Fully EMC protected • Flexible mechanical/electrical interface options Race Proven Technology Since 1990 Druck products have been successfully applied to motorsport, and the PDCR/PMP 4300 Series is a high performance pressure sensor for this harsh environment application. Baker Hughes has a new advanced and comprehensive silicon processing facility and is one of a few companies turning raw silicon into finished pressure sensing products. Each pressure module is fully temperature cycled to enhance long-term measurement stability. All metalwork is welded to form a rugged housing. Upon completion of the electrical connections the units are again thermally cycled to eliminate any possible defects in application. This rugged construction enables the 4300 Series to operate under extreme temperature and vibration conditions. Reliability remains at the forefront of Baker Hughes’s design and build philosophy. The combination of high technology sensing elements and advanced signal conditioning and packaging techniques provides reliable
