Magnetic exciter unit dsound® USE01i
for quality controlfor magnetic materialsfor resonance analysis

Magnetic exciter unit - dsound® USE01i - ds automation gmbh - for quality control / for magnetic materials / for resonance analysis
Magnetic exciter unit - dsound® USE01i - ds automation gmbh - for quality control / for magnetic materials / for resonance analysis
Magnetic exciter unit - dsound® USE01i - ds automation gmbh - for quality control / for magnetic materials / for resonance analysis - image - 2
Magnetic exciter unit - dsound® USE01i - ds automation gmbh - for quality control / for magnetic materials / for resonance analysis - image - 3
Magnetic exciter unit - dsound® USE01i - ds automation gmbh - for quality control / for magnetic materials / for resonance analysis - image - 4
Add to favorites
Compare this product


Characteristics

Type
magnetic
Applications
for magnetic materials, for quality control, for resonance analysis

Description

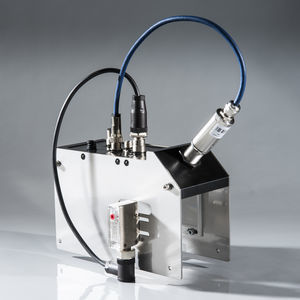

The dsound® USE01i exciter unit enables quality testing of various objects by means of acoustic resonance analysis with magnet excitation in an industrial environment. It is a highly integrated excitation unit that can perform inline object tests using our dsound® USS4 and dsound® USS5 sound sensors. This significantly extends the application range of our sound sensors. Technical data - Line-integrated test unit with magnetic excitation for ferromagnetic materials - Test performance up to 20 objects per second - Highest repeat accuracy / reproducibility of the excitations - CAN interface for integration and parameterization in the line - Real-time capable diagnostic and statistical functions - USB interface for parameterization via a PC - 2 digital switching outputs, two analogue inputs, one synchronization input for direct PLC connection - Robust, compact housing (IP67 degree of protection) - Real-time quality checks in combination with the dsound® USS4 and dsound® USS5 sensors - Base unit for the dsound® CapCheck leak testing system Areas of application - for quality and product testing e.g. in the food industry, automotive industry and mechanical engineering - for material testing and EOL testing - Leak testing system dsound® CapCheck
