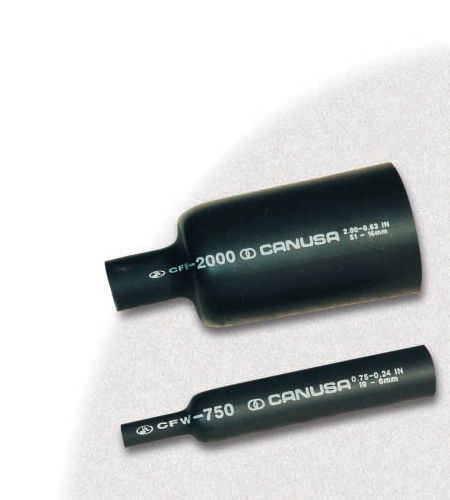

Heat-shrink tubing CFW series

protectioninsulatingtubular

Heavy wall heat shrink tubing provides maximum reliability for insulating and protecting cable joints and terminations. Withstands severe mechanical requirements of U.R.D., submersible and direct burial installations Except for clear or transparent tubing, all colors are UV resistant High impact, abrasion, corrosion and chemical resistance Optional thermoplastic adhesive liner for complete environmental protection and insulation Rated to 1000V Shrink ratio: 3:1 Continuous operating temperature: -55°C to 110°C, cable emergency overload temperature to 130°C Shrink temperature: 120°C min. UL 486D - UL file # E132914 CSA C22.2 No. 198.2 ANSI C119-1 ICEA and NEMA insulation thickness requirements DIN EN 60684-3-247 Strain relief and mechanical protection Insulation of primary low voltage cables
