Heat-shrink tubing DERAY®-PressMelt series

insulatingtubularwire harness

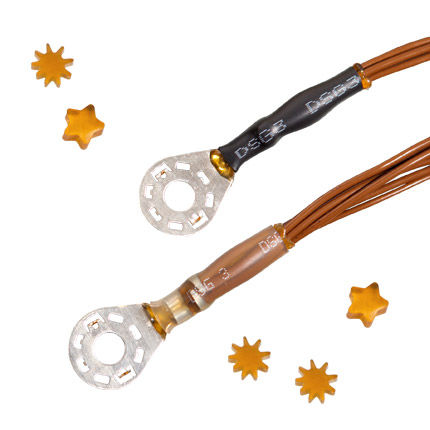

A specially designed sealing system to enhance and provide longitudinal water sealing in small cable bundles. Available in a system that consists of a heat shrink sleeve and adhesive inserts that seal wire harness splices and plug connectors Adhesive inserts compliment the adhesive lined shrink tube to ensure splice sealing Good chemical and fuel resistance Available in U and Star shaped profiles Good adhesion to PVC, XLPE and PP-EPDM wire insulating materials Continuous operating temperature: -40°C to 125°C Approved to OEM splice sealing specifications Sealing of splices, connectors and terminals Sealing of small wire harnesses The DERAY®-PressMelt system consists of two primary components: DERAY®-PressMelt adhesive inserts are available in a variety of geometric shapes as well as 85°C, 105°C and 125°C operating temperature ranges. DERAY®-IAKT/IHKT or SpliceMelt heat shrink tubing is cross-linked polyolefin tubing that is used to cover and encapsulate the entire installation. DERAY®-WorkMan, DERAY®-Shuttle RKS or DERAY®-DockMan shrink ovens are recommended for repeatable application. Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified. Select options: Color: Amber Please specify the product name, order number and options you require Order example: DERAY®-PressMelt, U7, 10,000 PCS
