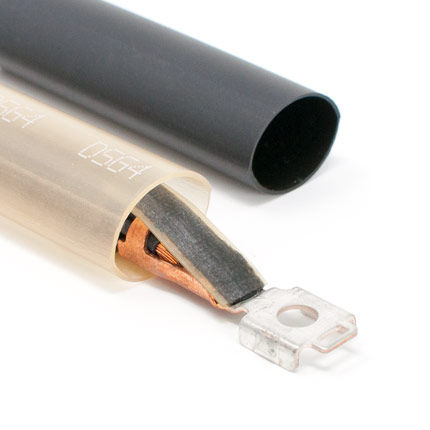

Heat-shrink tubing DERAY®-SpliceMeltband series

protectioninsulatingtubular

The DERAY®-SpliceMeltband system seals and environmentally protects connectors and cable bundles. A specially designed mastic lined adhesive tape sealing system that provides longitudinal water sealing for cable bundles, plug connectors and splices Cables are embedded individually into the adhesive tape to ensure 100% sealing Good chemical and fuel resistance Good adhesion to PVC, XLPE and PP-EPDM wire insulating materials Approved to OEM longitudinal water blocking specifications Water/moisture ingress elimination Abrasion protection and strain relief Noise dampening and reduction The DERAY®-SpliceMeltband system consists of two primary components: DERAY®-SpliceMeltband mastic adhesive strips, used to seal all of the individual elements of the cable bundle. DERAY®-SpliceMelt heat shrink tubing is cross-linked polyolefin tubing that is used to cover and encapsulate the entire installation. DERAY®-WorkMan or DERAY®-DockMan shrink ovens are recommended for repeatable application. Select Option: Length: Standard spool length or cut pieces on request Please specify the product name, order number and options you require Order Example: DERAY®-SpliceMeltband, 6210001007, 10-1.5, 500 m reel
