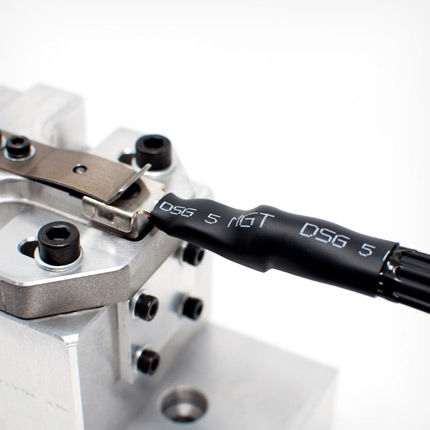

Protection sleeve DERAY®-MGT 5 series

heat-shrinkabletubularfor electrical cables

Adhesive lined heat shrink system specifically designed to insulate, seal and protect terminals in automotive assemblies. High shrink ratio to fit varying terminal sizes Seals and protects against water, moisture and chemicals Adhesive bonds readily to PVC, XLPE and PP-EPDM cable jackets Shrinks rapidly for quick installation Shrink ratio: 6:1 Continuous operating temperature: -40°C to 125°C Shrink temperature: 120°C Combination with DERAY®-SpliceMelt if additional adhesive is needed FCA Standard Fiat Norm 91309/1 Ground terminals Eyelet terminals DERAY®-WorkMan shrink oven is recommended for repeatable application. Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified. Please specify the product name, order number and options you require Order example: DERAY®-MGT 5-System, 45mm
