Heat-shrink tubing CJ 20 Series

tubularfor electrical cablesabrasion-resistant

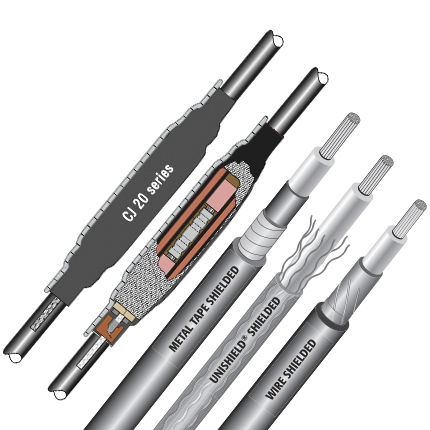

CJ 20 series joints are single core, 5 kV to 35 kV, heat shrink joints for XLPE and EPR extruded dielectric, metal tape, wire and lead sheath shielded power cables. The CJ 20 series joints are supplied with all of the hardware required to shield and externally ground the joint without soldering. Most of the joints can be supplied with either a tube or a wraparound sleeve for the outer jacket. Fast, consistent installation means lower installed costs Installation environment: use of torch adds flexibility to cable preparation in any climate Heat activated seal ensures maximum protection against moisture ingress Wraparound jacket sleeve option (W) allows for reduced installation space Lightweight construction requires no additional support Wide cable ranges for reduced inventory requirements Tough abrasion resistant outer covering protects against damage from improper backfill Slim profile allows installation in confined areas IEEE 404-2000 The CJ 20 series joints were design tested to IEEE404- 2000 at an independent laboratory as single core unjacketed joints. This represents the worst case condition as the joints submerged under water were not afforded the added protection of the CJ 20 series joints with tubular or wraparound jackets.
