Heat-shrink tubing FCFW seriesflatfor cablesabrasion-resistant
Add to favorites
Compare this product
Characteristics
- Type
- heat-shrinkable
- Structure
- flat
- Applications
- for cables
- Protection level
- abrasion-resistant, flame-retardant, impact-resistant, waterproof
- Other characteristics
- bendable, thick wall
- Temperature
Max.: 120 °C
(248 °F)Min.: -55 °C
(-67 °F)
Description

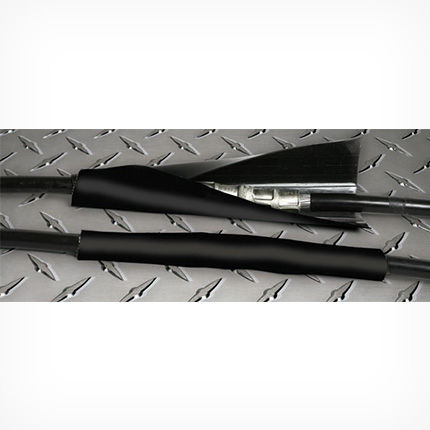

Heavy wall heat shrink tubing insulates and protects electrical splices and terminations where maximum flame retardancy and exceptional insulating and sealing characteristics are required.
Flame retardant
UV resistant
High impact and abrasion resistance - capable of withstanding severe mechanical abuse of U.R.D., submersible and direct burial installations
Optional thermoplastic adhesive liner provides complete environmental protection and insulation
Rated for up to 2 kV
Shrink ratio: 3:1
Continuous operating temperature: -55°C to 110°C
Shrink temperature: 120°C min.
UL 486D - UL file # E132914
UL94 V-0 - UL file # E167396
CSA C22.2 No. 198.2
IEC 60684-3-247
ICEA S-19-8 and NEMA insulation thickness requirements
QPL SAE AS23053/15 Class 1
Flame-retardant in accordance with ASTM D2671
Insulation of low voltage cables
Flame retardant systems
