Waterproof seal DERAY®-DuoMelt seriesflattubularpolyolefin
Add to favorites
Compare this product
Characteristics
- Type
- flat
- Configuration
- tubular
- Material
- polyolefin
- Application
- for connectors, wire harness, for vehicles
- Other characteristics
- chemical-resistant, abrasion-resistant, waterproof
- Temperature limit
Min.: -40 °C
(-40 °F)Max.: 105 °C
(221 °F)
Description

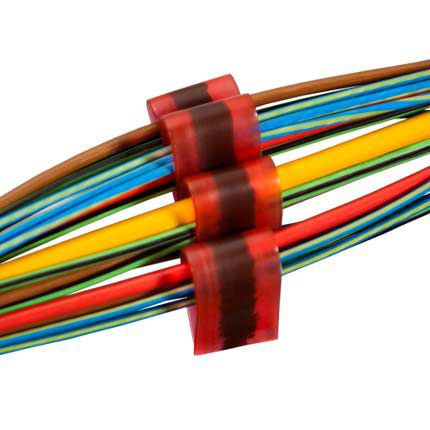

DERAY®-DuoMelt seals and environmentally protects connectors and cable bundles.
A mastic lined adhesive tape available as a sealing system with a specially designed heat shrink tube that provides longitudinal water sealing for cable bundles, plug connectors and splices
Cables are embedded individually into the adhesive tape to ensure 100% sealing
Good chemical and fuel resistance
Good adhesion to PVC, XLPE and PP-EPDM wire insulating materials
Continuous operating temperature: -40°C to 85°C or 105°C
Approved to OEM longitudinal water blocking specifications
Water/moisture ingress elimination
The DERAY®-DuoMelt system consists of two primary components:
DERAY®-DuoMelt mastic adhesive strips, 85°C and 105°C operating temperatures, used to seal all of the individual elements of the cable bundle.
DERAY®-IAKT / DERAY®-IHKT heat shrink tubing is cross-linked polyolefin tubing that is used to cover and encapsulate the entire installation.
