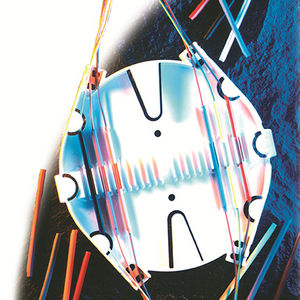

Heat-shrink tubing ​FCFW-N series

tubularfor cablesabrasion-resistant

Heavy wall flame retarded heat shrinkable tubing suitable for use in a nuclear environment, insulates and protects electrical splices and terminations. Functional after 850 kGy cumulative dose Flame retardant UV Resistant Rated for up to 2 kV High resistance to impact and abrasion, lined with thermoplastic adhesive Shrink ratio: 3:1 Continuous Operating temperature: -55°C to 110°C Shrink Temperature: 120°C min. UL 486D - UL file # E132914 UL 94 V-0 - UL file # E167396 CSA C22.2 No. 198.2 IEC 60684-3-247 ICEA S-19-81 and NEMA insulation thickness requirements NF M 64-001 IEC 60068 LOCA/POSTLOCA in accordance with RCC-E 2007 NF M64-001 Continous use in a nuclear environment, strain relief, sealing, insulable protection on LV cable The sleeves according NF M 64-001, are qualified for use in zones K1, K2 and K3
