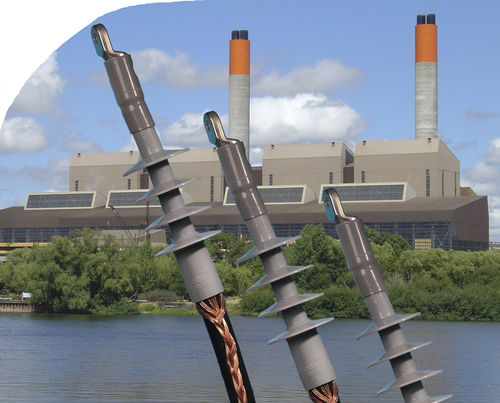

Cold-applied push-on cable termination CCAT series

tubularheat-shrinksilicone

The silicon rubber push-on termination is suitable for single core copper wire screened and bonded PE-cables up to Um = 24kW. The item is designed for use with compression and screw cable lugs, while in terms of the properties, it allows for easy and quick installation, being resistant to ozone and UV. The construction is a hydrophobic one, while the cross-section range between 25 and 630m2 is also worth mentioning. The one-piece range-taking insulation body comes with a stress control element, being supplied with lug caps, preventing moisture ingress. Finally, there are several accessories available for the screen and conductor connection, with screwed or compression fittings, while the item is compatible with DIN VDE 0278-HD 629.1 standards.
