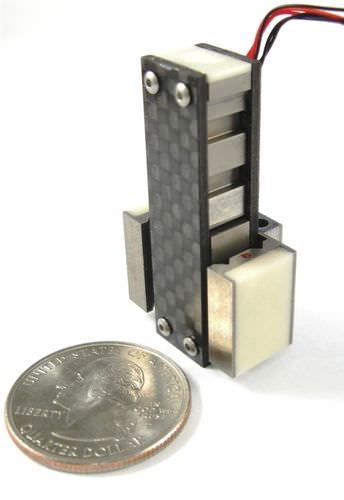

Linear piezoelectric motor 10 mm, 30 N | I-30 Series

• Total macro stroke: 10 mm (0.4 in). Actual value is determined by motor design. Designs can be configured for increased travel. • Motion resolution: Sub-micron step capability- using micro stepping driver. • Dimensions: Approximately 24 mm x 14 mm x 48 mm (0.95 in x 0.55 in x 1.89 in) depending on force specification. • Motor speed: Up to 30 mm/sec depending upon the motor architecture and driving frequency. • Output force: 30 N (6.7 lb). The motor can be configured for power-off slip or power-off hold.
