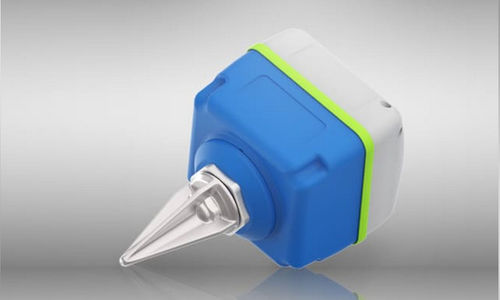

Continuous structure monitoring seismic sensor IGU-16

Physical Specs Size: 95mm x 103mm x 118mm (without spike) Weight: 1.1 kg (including internal battery and spike) Waterproof: IP67 Operating Temperature: -40℃ to +70℃ Battery: 38.48 Wh Operating Life @ 25°C 25 days @ 1ms continuous 50 days segmented (12hours ON/12hours SLEEP) Tech Specs Sensor Specs DT-SOLO 10Hz (All parameters are specified at +25 °C in the vertical position unless otherwise stated.) Natural Frequency: - 10Hz - Coil Resistance: - 1800Ω - Damping: - Open Circuit Damping - 0.51 Damping with 20 KΩ - 0.70 Sensitivity: - Open Circuit Intrinsic Voltage Sensitivity - 85.8V/m/s(2.18V/in/s) Distortion: - ＜0.1% - Sensor Specs DT-SOLO 5Hz (All parameters are specified at +22 °C in the vertical position unless otherwise stated.) Natural Frequency: - 5Hz - Coil Resistance: - 1850Ω - Damping: - Open Circuit Damping - 0.60 Damping with 43 KΩ - 0.70 Sensitivity: - Open Circuit Intrinsic Voltage Sensitivity - 80 V/m/s (2.03V/in/s) Distortion: - ＜0.1% - Smart Electronics Specs (@ 1ms sample interval, 31.25 HZ, 25°C unless otherwise indicated)
