Linear speed sensor 6DX PRO series
Add to favorites
Compare this product
Characteristics
- Type of movement
- linear
- Frequency
Max.: 10,000 Hz
Min.: 0 Hz
- Temperature range
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description

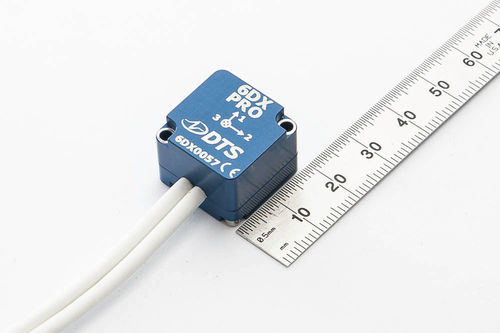

World's smallest, high performance 6 Degrees of Freedom
Rugged, ultra-small 19 x 19 x 14.5 mm
Lightweight only 12 grams
Factory repairable sensor channels
Range Options
6DX PRO 2K-18K
3 accelerometers: ±2000 g
3 angular rate sensors: ±18,000 deg/sec
6DX PRO 20K-50K
3 accelerometers: ±20,000 g
3 angular rate sensors: ±50,000 deg/sec
High Performance
Up to 20,000 g shock rating; highest available
High bandwidth
IP67 rated sealed enclosure
Meets NHTSA, FAA, ISO 6487 and SAE J211 practices
