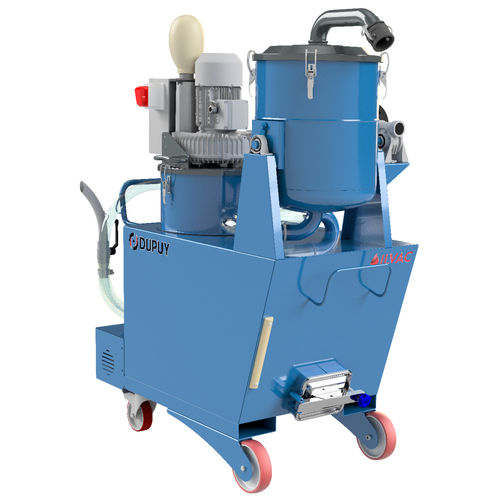

Oil and chip vacuum cleaner OILVAC 300
industrialliquidschip

oil and chip vacuum cleaner
oil and chip vacuum cleaner
Add to favorites
Compare this product


Characteristics

Domain
industrial
Substance vacuumed
liquids, oil and chip, chip
Power source
three-phase
Container type
steel
Configuration
mobile
Other characteristics
with solid-liquid separator, waste pump, micro-filter, low-noise
Applications
for machine tools
Power

4 kW

Capacity

65 l, 300 l
(17.2 gal, 79.3 gal)

Air flow

320 m³/h
(11,300.7 ft³/h)

Vacuum

Max.: 353 mbar
(5 psi)

Noise level

77 dB

Weight

275 kg
(606.27 lb)

Height

188 cm
(74 in)

Length

145 cm
(57.1 in)

Width

72 cm
(28.3 in)

Description

The latest addition to the Oil & Chips range, combining elements of the 200 and 450 versions in a unique and innovative machine. This three-phase industrial vacuum cleaner for oil and chips comes from the structure of the suction bucket. It features a 65lt metal chip hopper and a large 300lt tank, making the vacuum cleaner suitable for cleaning and maintenance of medium and large CNC machines or several machines without the need to empty the storage tank each time. The vacuum cleaner is equipped with a 4 kW turbine and a second stage of fine separation with regenerable or disposable filter elements with different filtration efficiencies. Industrial vacuum cleaner OILVAC 450 in 9 points: • A single vacuum cleaner for separating, reusing or disposing of oil mixed with metal swarf • Vacuum cleaner with three-phase side channel turbine: 4kW • Chassis prepared for lifting with forklift truck • Electric float for stopping liquids when container is full • 65 litre capacity grid basket for solids • 365 litre capacity container for oils • Wheels and specific oil-resistant seals • Rotating suction nozzle to facilitate the use of the suction hose
