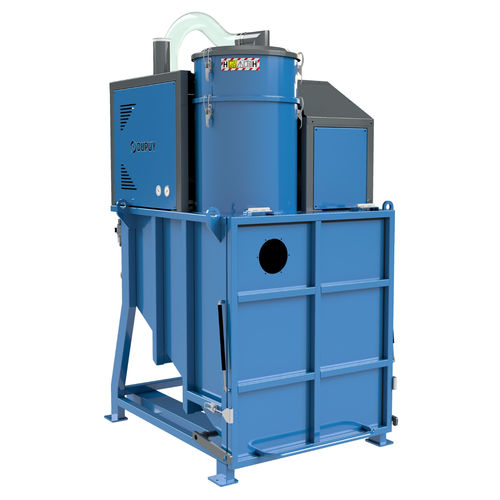

Industrial vacuum cleaner TANKVAC
dustthree-phasestationary

Industrial vacuum cleaner - TANKVAC - DU-PUY srl - dust / three-phase / stationary
Industrial vacuum cleaner - TANKVAC - DU-PUY srl - dust / three-phase / stationary
Add to favorites
Compare this product


Characteristics

Domain
industrial
Substance vacuumed
dust
Power source
three-phase
Configuration
stationary
Other characteristics
ATEX
Power

Min.: 12.5 kW

Max.: 17.5 kW

Capacity

1,000 l
(264.2 gal)

Air flow

Min.: 1.1 m³/h
(38.8 ft³/h)

Max.: 720 m³/h
(25,426.6 ft³/h)

Vacuum

Min.: 431 mbar
(6 psi)

Max.: 588 mbar
(9 psi)

Weight

660 kg
(1,455.05 lb)

Height

125 cm
(49.2 in)

Length

240 cm
(94.5 in)

Width

157 cm
(61.8 in)

Description

TANKVAC industrial vacuum cleaner is a model equipped with a three-phase motor designed for continuous and long-lasting use. Thanks to the three-phase turbine, it requires little maintenance. Made of highly durable materials, it can be integrated into a centralized vacuum system, with the possibility of customization in terms of size and power to fit the specific needs of each production facility. Its square design allows TANKVAC to accumulate up to 1,000 liters of vacuumed material, making it suitable for solids and dust removal and disposal. Forklift grips ensure maximum safety both in transport and during maintenance. The vacuum cleaner is equipped with a metal electrical panel that complies with CE regulations, a 10-meter-long neoprene rubber cable and a 63-amp plug with star delta starting. All metal parts are epoxy powder coated. TANKVAC is available in two versions: Airflow, with a High Airflow turbine, and High Vacuum, with a High Vacuum turbine. It is also available in the ATEX-certified version.
