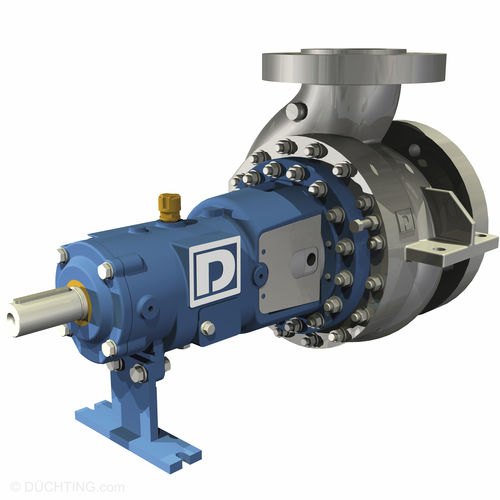

Water pump IP

electriccentrifugalstationary

TYPE IP Single stage end-suction, centrifugal pumps. Horizontal centerline mounted Back pullout design (the complete rotating assembly can be removed while the casing remains on its position) Continuous operation in industrial processes for pumping clean and corrosive liquids Double volute casing for extended bearing and seal life time Wear rings in composite material to maintain best efficiency and reliability Pump casing design up to 100 bar Oil or grease lubricated bearings Cartridge mechanical seal, seal plan as per API Vertical installation optional available Design in accordance with API 610 if specified Technical Data Pump Size: - 2 1/2″ to 18″ max. Pressure: - 1450 PSI max. Flow: - 18500 gpm Total head: - up to 720 ft Rotating speed: - to 3600 rpm Fields of Application Suitable for handling of slightly abrasive and corrosive liquids. Pressure boosting systems in industrial processes Water supply, and water treatment plants Seawater desalination plants Hot water applications Oil & Gas – Applications Feed water circulation Materials Available in almost any metallic material designs from cast iron to SUPER DUPLEX stainless steel. The materials are carefully selected depending on the application, the pumped medium and the combinations of materials adapted to the respective conditions of use. Standards & Approvals Manufactured according to ISO, DIN and ASME (API 610/ ISO 13709 possible)
