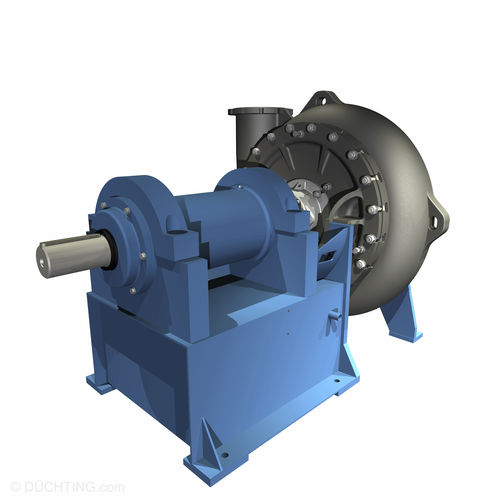

Oil pump WRX

electriccentrifugalstationary

TYPE WRX Robust, highly wear-resistant single-stage centrifugal pump with closed impeller and wear plates on suction and bearing side. Pumping of media with high sliding wear as well as on mechanical impact by high levels of coarse grain (grain size up to 200 mm) The design allows the use of very hard materials => min. 550 HB Suction: axial Discharge: tangential Axially adjustable impeller Shaft sealing by stuffing box or mechanical seal Various impeller shapes are possible (e.g. 2- or 3-vaned) Different arrangements available (e.g. vertical) Back pullout design (the complete rotating assembly can be removed while the casing remains on its position) Durable, oil or grease lubricated bearings Direct or belt driven Usage as underwater pump through special assemblies possible Counterclockwise rotation design possible Technical Data Pump Size: - 8″ to 16″ max. Pressure: - 150 PSI max. Flow: - 22000 gpm Total head: - up to 245 ft Rotating speed: - to 900 rpm Fields of Application Particularly suitable for pumping highly abrasive and corrosive media with fine to very coarse solids. Special foundation Mechanised tunneling Gravel and Sand Industry Mining Ash Handling Furnaces Offshore applications Traffic tunneling Supply tunnelling zinc oxide production Sugar industry Materials Spiral casing: - 0.9650 (quenched and tempered) Impeller: - 0.9650 (quenched and tempered) Shaft: - 0.9650 (quenched and tempered) Mechanical seal: - 1.0503 (C45) Standards & Approvals Manufactured according to DIN / ASME
