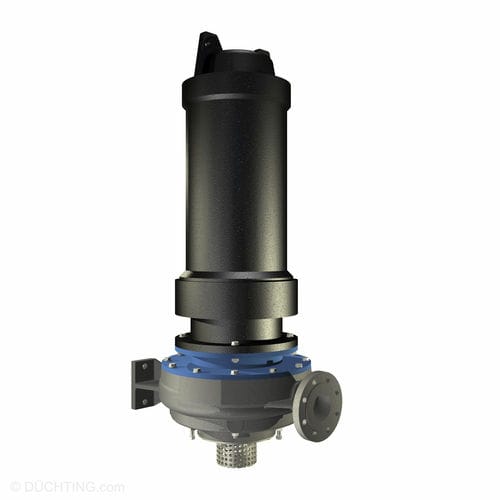

Water pump WRS

oilelectricsubmersible

TYPE WRS Single stage vertical, centrifugal, submersible pump. Pumping of abrasive and corrosive liquids Available in almost any metal from cast iron to SUPER DUPLEX stainless steel Suction flange: Vertical (including suction strainer) Discharge flange: Radial Closed impeller with three-dimensionally curved vanes Re-adjustable inclined gap between impeller and wear plate to optimize the efficiency and the differential pressure after longer operation Single acting mechanical seal Moisture sensor in an oil reservoir between pump and motor Submersible IEC three-phase motor (IP68) Optimized design ensures easy maintenance and long service life even under difficult conditions Technical Data Pump Size: - 1 1/4″ to 6″ max. Pressure: - 150 PSI max. Flow: - 1630 gpm Total head: - up to 300 ft Rotating speed: - to 3600 rpm Fields of Application Handling of abrasive and corrosive media. Flue gas desulfurization Chem. industry Water treatment Seawater desalination plants Fertilizer industry Potash industry Materials Volute casing: - Duplex stainless steel Impeller: - Duplex stainless steel Wear plate: - Duplex stainless steel Shaft: - 1.4462 Mechanical seal: - Silicon carbide (SiC)
