Oil-free compressor pistonairelectric
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electric
- Portability
- stationary
- Lubrication
- oil-free
- Application domain
- for medical applications
- Applications
- laboratory, for medical devices
- Other characteristics
- compact, rugged, with dryer
- Tank volume
3 l, 10 l, 25 l, 55 l, 90 l
(0.8 gal, 2.6 gal, 6.6 gal, 14.5 gal, 23.8 gal)- Flow
Max.: 860 l/min
(227.19 us gal/min)Min.: 35 l/min
(9.25 us gal/min)- Power
Max.: 12 kW
(16.32 hp)Min.: 0.53 kW
(0.72 hp)
Description

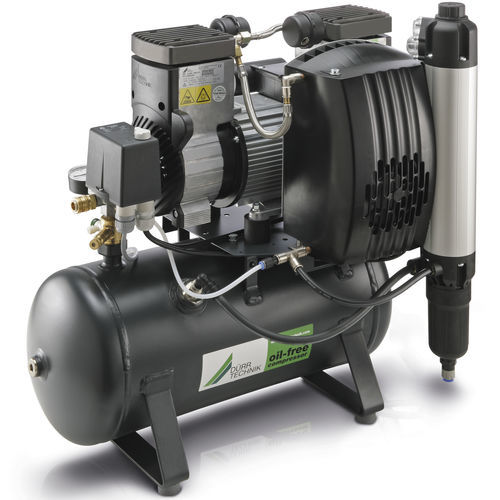

The standard station has an oil-free compressor, control gear, and quick coupling with hose nozzle. The compact design allows the cooler and the membrane dryer to be mounted on the top of the pressure receiver, which features the antibacterial internal coating. Further options such as a fine filter and an operational hours meter are available.
Technical date of the membrane dryers:
Pressure range (usable) 4 – 10 bar (60-145 psi)
Operating pressure 7 bar (100 psi)
Ambient temperature 5 – 40 °C (41 – 104 F)
Dew point reduction 35 Kelvin (-396 F)
Microfilter (built-in) 3 micron
Volume of vessel
U = 3 litres
W = 10 litres
T = 25 litres
H = 55 litres
P = 90 litres
