Oil-free compressor MC series
pistonairelectrically-powered

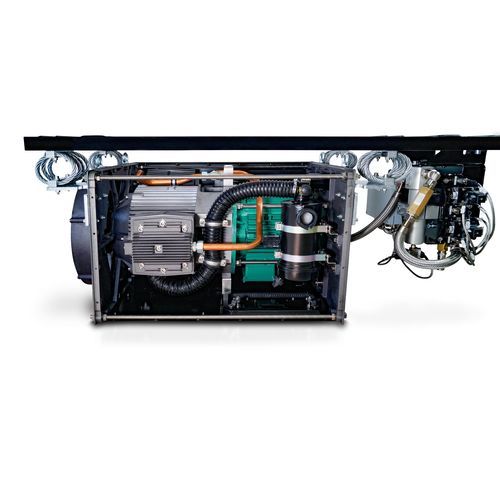

Oil-free compressor - MC series - DÜRR TECHNIK - piston / air / electrically-powered
Oil-free compressor - MC series - DÜRR TECHNIK - piston / air / electrically-powered
Oil-free compressor - MC series - DÜRR TECHNIK - piston / air / electrically-powered - image - 2
Oil-free compressor - MC series - DÜRR TECHNIK - piston / air / electrically-powered - image - 3
Oil-free compressor - MC series - DÜRR TECHNIK - piston / air / electrically-powered - image - 4
Oil-free compressor - MC series - DÜRR TECHNIK - piston / air / electrically-powered - image - 5
Oil-free compressor - MC series - DÜRR TECHNIK - piston / air / electrically-powered - image - 6
Oil-free compressor - MC series - DÜRR TECHNIK - piston / air / electrically-powered - image - 7
Oil-free compressor - MC series - DÜRR TECHNIK - piston / air / electrically-powered - image - 8
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
industrial
Applications
for railway vehicles
Other characteristics
low-noise, rugged
Pressure

10 bar
(145.04 psi)

Flow

720 l/min, 920 l/min, 1,220 l/min
(190.2 us gal/min, 243.04 us gal/min, 322.29 us gal/min)

Power

7.5 kW, 9.5 kW
(10.2 hp, 12.92 hp)

Length

1,000 mm, 1,120 mm
(39 in, 44 in)

Width

650 mm
(26 in)

Height

510 mm
(20 in)

Weight

200 kg, 285 kg
(440.9 lb, 628.3 lb)

Noise level

60 dB, 67 dB, 69 dB

Description

The MC product range is a newly developed range, based on the know-how and the experience of 15 years in oil-free main air compressors and 25 years in oil-free auxiliary air compressors. The MC range is characterized by its compactness and an ideal solution for new projects. Benefits oil-free low life-cycle costs robust and durable maintenance-friendly housing for protection against dust and stone chipping soundproof housing – as a result, lower noise levels starting at low temperatures Characteristics: operational from -50°C to +70°C (depending on type) various installation of aggregates possible system solutions with housing soundproofing FU-enabled motors / IE3 motors
