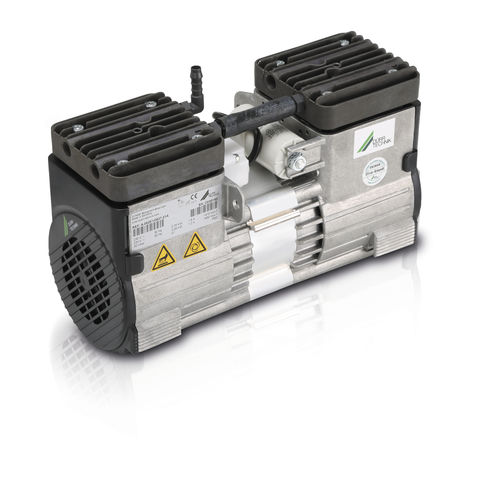

Piston vacuum pump KV 15
oil-freesingle-stagefor medical applications

piston vacuum pump
piston vacuum pump
piston vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
piston
Lubrication
oil-free
Number of stages
single-stage
Applications
for medical applications, suction
Other characteristics
low-noise level
Ultimate vacuum

Max.: 150 mbar
(2.18 psi)

Min.: 30 mbar
(0.44 psi)

Flow rate

Max.: 72 l/min
(19.02 us gal/min)

Min.: 38 l/min
(10.04 us gal/min)

Description

The oil-free piston vacuum pumps of the range KV are realized where utmost operating safety is required, as for example in 24/7-application in industry enterprises, for retention of hydraulic oils on service at construction machinery as well as for medical machines. The oil-free piston-vacuum pumps offer as a 2-phase pump a vacuum of up to 30 mbar. The characteristic of the oil-free piston-vacuum pumps are the integrated, overdimensioned bearings. Owing to this, the best possible lifetime and reliability of the vacuum pumps is achieved. The suction capacity of oil-free piston-vacuum pumps of the range KV remains almost unchanged even after many thousand operating hours because of the exactly aligned components. Advantages Extremely reliable Long lifetime Constant flow volume Piston principle

Catalogs

21 Pages
