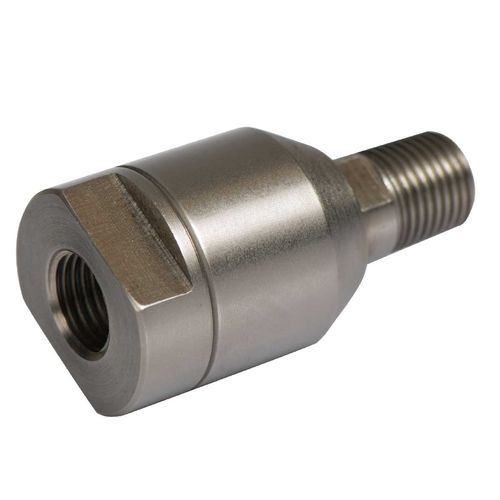

Oil rotary union DNCHP serieshydraulichigh-pressurelow-pressure
Add to favorites
Compare this product
Characteristics
- Medium
- for oil
- Applications
- hydraulic, high-pressure, low-pressure, for transfer, for pipe, for rollers, medium-pressure, for construction vehicles
- Material
- carbon steel
- Other characteristics
- radial, with seal, screw-in, compact, low-speed, right-angle, orientable, light
- Rotational speed
Max.: 5 rpm
(31.42 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 350 bar
(5,076 psi)Min.: 0 bar
(0 psi)- Nominal size
Max.: 1 in
Min.: 0.25 in
Description
The Duff-Norton Europe DNCHP Series Rotary Union is an upgrade of the current DNTP Series and is specifically designed to respond to the extreme conditions encountered in Construction and Farming applications. Compared to the DNTP series, the DNCHP Series offers better performance in terms of weight, torque, and reliability in these applications.
Its simple design, using nickel plated carbon steel for corrosion resistance, prevents high pressure hoses from twisting in any weather and temperature condition.
Activities:
– Trading
– Transport and Logistics
Surface treatment: Chemical Nickel
Implantation: Straight
Temperature working: -20°C to 130°C
Connection: Thread
BSP, NPT
*for any other type of connection, please contact us.
Catalogs
DNCHP
2 Pages
