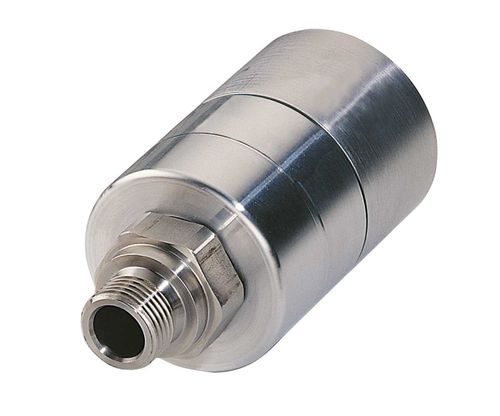

Water rotary union 600 for oilfor airfor vacuum
Add to favorites
Compare this product
Characteristics
- Medium
- for water, for oil, for air, for vacuum
- Applications
- hydraulic, pneumatic, low-pressure, for transfer, for pipes, for rollers, for the steel industry, for the chemical industry, for the plastics industry, for the paper industry
- Material
- aluminum, stainless steel, carbon steel
- Other characteristics
- with seal, ball bearing, compact, high-speed, low-speed, orientable, small
- Rotational speed
Max.: 1,500 rpm
(9,424.78 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 100 bar
(1,450 psi)Min.: 0 bar
(0 psi)- Nominal size
Max.: 1 in
Min.: 0.25 in
Description
The 600 series rotary unions are used to carry fluids at medium pressure and medium speed.
Surface treatment: Chemical Nickel, Anodizing
Implantation: Straight
Temperature working: Up to 120°C
Connection: Thread
BSP, DIN 7608, NPT
*for any other type of connection, please contact us
