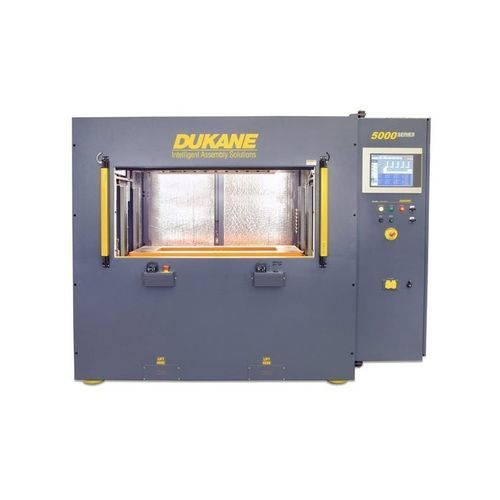

MMA welding machine VW5700

automatichydraulic

Get Efficient Process Control with Advanced HMI Software Provides real time graphing of amplitude, pressure, and collapse distance, which gives users additional control to monitor, evaluate and troubleshoot their vibration welding process. Built in logical control eliminates the need of PLC programming expert for changing simple standard machine logic. Enjoy the Ergonomic Features Large mechanical mass of the linear vibration head coupled with the solid welded tubular steel frame construction eliminate machine failure due to process vibration and provides one of the quietest machines in the industry, reducing operator fatigue. Reduce your Downtime and maintenance cost with Dukane Backward and forward engineered compatibility means up to 80% of components in welders are interchangeable providing better flexibility and adaptability. Twenty Gallon Rexroth hydraulic power unit with heat exchanger and proportional valve, give the unit a superior service life. Four continuously supported linear rails and eight reciprocating bearings provide with the best table slide system in the industry. Heaviest-in-class, one-piece flame cut bridge stops unwanted vibration at its source. Robust frame with numerous cross members to support dovetail slide system for table. Tubular steel table with 1” (25mm) thick Blanchard ground surface provides stable platform for lower tooling. Dukane’s standard size machine packs all the features you want and need for an upper part size of 1100 mm x 450 mm or less. Like all Dukane vibration welders, the VW5700 features a fully welded rectangular steel tubing frame and lift table.
