3-axis positioning system SpotOn

laseroptical beamUSB

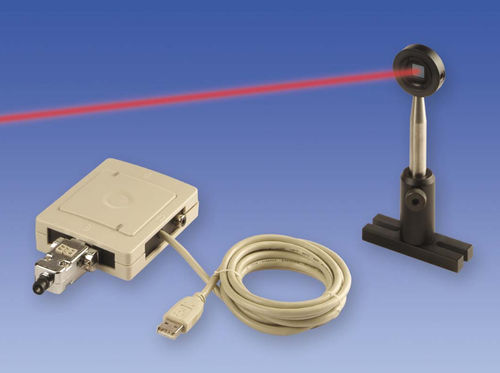

Sophisticated Analog and Digital beam positioning system. The system offers real time measurement of laser displacements with update rate of up to 30 KHz (for the 9x9mm PSD) and up to 60 KHz (for the 4x4mm PSD) and resolution of 1 um. Special high resolution versions with limited dynamic range are offered: up to +/- 0.1 um for the 4x4mm and up to +/- 0.2um for the 9x9mm PSD. The system measures both CW and pulsed beams, and offers an external trigger for synchronized data acquisition. Multiple devices control via USB port is available (up to 8 devices). Offering TCP/IP communication protocol and remote control . ActiveX software for integration in customer’s application program is available. A complete system based on a PSD sensor (Lateral Effect type) with 3m long attached cable, an electronics box and high precision power supply. ​ Operation systems supported are Windows XP, Vista, 7, 8, 10 - both 32 and 64 bits.
