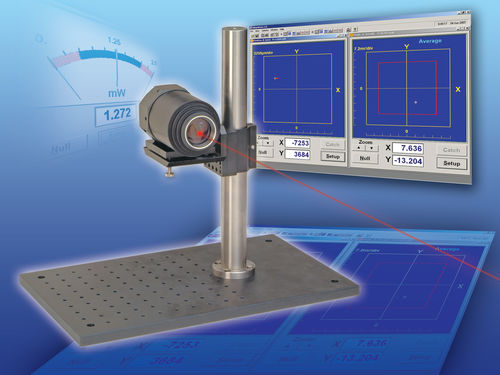

Laser beam aligner AlignMeter LA

The system performs simultaneous measurements of centration (in µm), angular deviations (in mRad) of the beam with respect to the outer housing or tube, as well as absolute power. The system measures CW beams, and offers portable, fast and accurate beam alignment solution. The usable beam size is up to 22.5mm and the angle measurement range is ±2° with a resolution of ± 1 sec. It is a USB2.0 device, the system runs on any Notebook computer with Windows 7/8/10 OS (32 & 64 bit). Multiple devices control via USB port is possible. Data streaming via TCP/IP communication protocol or RS232 . ActiveX software for integration in customer's application program is available. A complete system based on a sensor head with 3m long attached cable, an electronics box with USB2.0 cable, software on CD disk, carrying case.
