DC motor GR 42x25
brushed24 V12 V

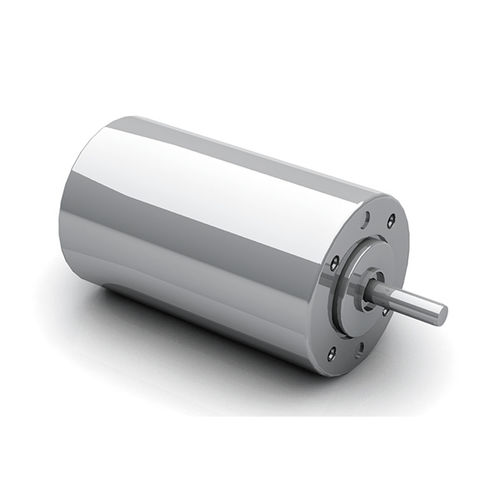

DC motor - GR 42x25 - Dunkermotoren GmbH - brushed / 24 V / 12 V
DC motor - GR 42x25 - Dunkermotoren GmbH - brushed / 24 V / 12 V
DC motor - GR 42x25 - Dunkermotoren GmbH - brushed / 24 V / 12 V - image - 2
Add to favorites
Compare this product

Go to the Dunkermotoren GmbH website for more information

Characteristics

AC/DC
DC
Type
brushed
Voltage
24 V, 12 V
Protection class
maintenance-free
Configuration
permanent magnet
Power

Max.: 38 W
(0.052 hp)

Min.: 21.6 W
(0.029 hp)

Torque

Max.: 5.7 Nm
(4.2041 ft.lb)

Min.: 3.8 Nm
(2.8027 ft.lb)

Rotational speed

Max.: 3,750 rpm
(23,561.94 rad.min-1)

Min.: 3,100 rpm
(19,477.87 rad.min-1)

Description

» Mechanical commutation through multipartite collector provides long lifetime » Operation in both directions of rotation » Ball bearing at motor output shaft is standard » Custom shaft length and diameter, shaft on both sides, special winding, higher protection class up to IP 67 Nominal voltage - V:12 Nominal current - A:1.85 Nominal torque - Ncm:3.9 Nominal speed - rpm:3450 Friction torque at no load Ncm:0.7 Peak stall torque Ncm:19 No load speed - rpm:4350 Maximum output power W:21.6 Nominal power - W:14.1 Torque constant - Ncm/A:2.53 Terminal resistance Ohm:1.54 Terminal inductance mH:1.8 Starting current - A:7.8 No load current - A:0.34 Demagnetisation current A:14 Rotor inertia gcm^2:71 Weight kg:0.39
