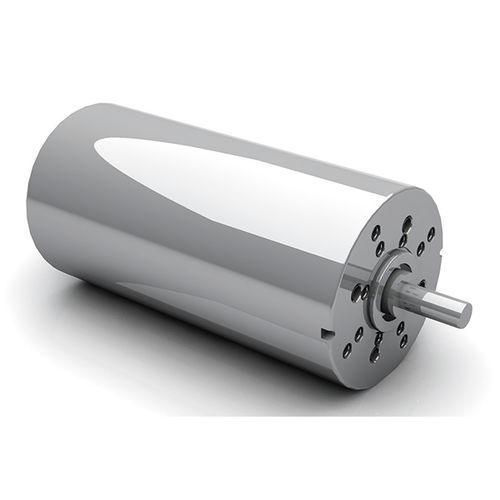

DC motor GR 63x55brushed24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 24 V, 12 V, 60 V
- Protection class
- robust
- Configuration
- permanent magnet
- Power
75.4 W, 94.7 W, 97.5 W, 99.3 W
(0.103 hp, 0.129 hp, 0.133 hp, 0.135 hp)- Torque
0.24 Nm, 0.27 Nm, 0.283 Nm
(0.17701 ft.lb, 0.19914 ft.lb, 0.20873 ft.lb)- Rotational speed
3,000 rpm, 3,350 rpm, 3,450 rpm
(18,849.56 rad.min-1, 21,048.67 rad.min-1, 21,676.99 rad.min-1)
Description
» Operation in both directions of rotation
» Ball bearing at motor output shaft is standard
» Optionally with custom shaft length and diameter, shaft on both sides, special and high voltage winding, higher protection class up to IP 67
Nominal voltage - V:12
Nominal current - A:8.7
Nominal torque - Ncm:24
Nominal speed - rpm:3000
Friction torque at no load - Ncm:2
Peak stall torque Ncm:190
No load speed - rpm:3500
Maximum output power W:174
Nominal power - W:75.4
Torque constant - Ncm/A:3.17
Terminal resistance Ohm:0.2
Terminal inductance mH:0.5
Starting current - A:60
No load current - A:0.8
Demagnetisation current A :66
Rotor inertia gcm^2:750
Weight kg:1.7
