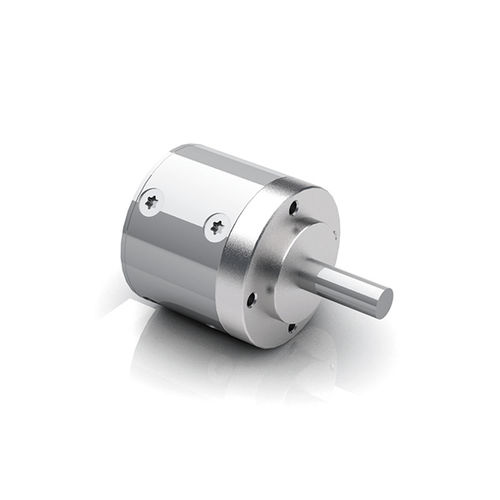

Planetary gear reducer PLG 32coaxial1 - 5 Nmcompact
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Torque
- 1 - 5 Nm
- Configuration
- compact
- Performance
- high-power
- Applications
- for electrical drives
Description
» Compact, industry compatible planetary gearbox
» High efficiency
» Ring gear, planetary carriers and sun wheels made of steel
» Output shaft with double ball bearings
» All stages have straight toothing
Gear ratio - 4.5 : 1
Number of stages:1
Nominal output torque Ncm:40
Max. efficiency - %:90
Max. axial load - N:30
Max. radial load - N:100
