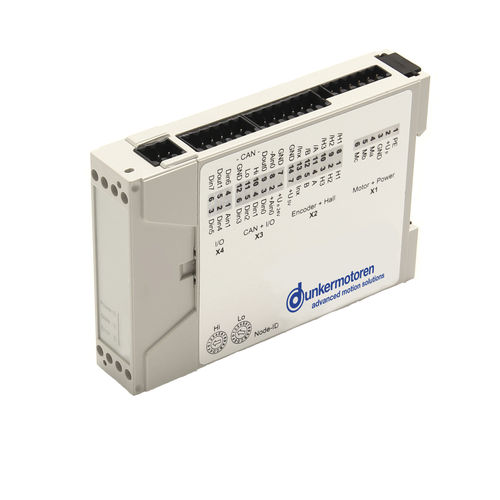

DC speed controller BGE 6010 Abrushless4-quadrantcompact
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Motor type
- brushless
- Other characteristics
- 4-quadrant, compact
- Input/output
- 2 analog inputs
- Input voltage
Min.: 9 V
Max.: 60 V
- Output voltage
Min.: 9 V
Max.: 30 V
- Current
10 A
Description
Very compact 4-quadrant controller to control brush-type and brushless DC-motors
With CANopen interface (Device profile DSP402, Protocol DS301)
Attached or integrated incremental encoder
Optional heat sinks for higher continuous currents
Catalogs
Main Catalog Dunkermotoren
280 Pages
Product Range
32 Pages
