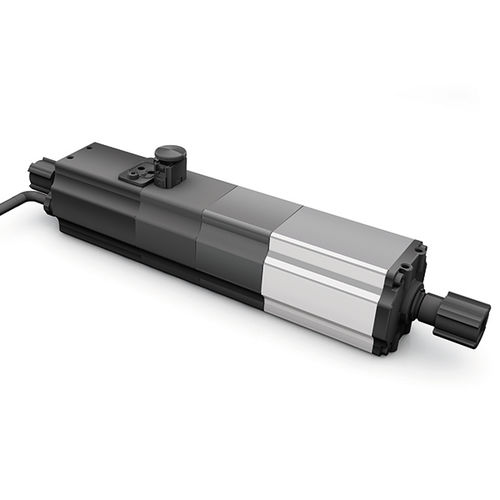

Single-phase motor D259EC220 VIP54
Add to favorites
Compare this product
Characteristics
- AC/DC
- single-phase
- Type
- EC
- Voltage
- 220 V
- Protection class
- IP54
- Configuration
- capacitor, with built-in electromagnetic brake
- Applications
- for Venetian blinds
- Power
96 W
(0.131 hp)- Torque
3 Nm
(2.2127 ft.lb)- Rotational speed
23 rpm
(144.51 rad.min-1)
Description
Single-phase capacitor motor for short time operation with mounted gearbox
Single- and double shaft motors are available
With integrated temperature monitoring and integrated electromagnetical brake
Adjustable lower and upper end limits, additional external limit switch for the upper end position
Comfortable adjustment of the end positions
